The ultra-light XC carbon
Frame with headset, seat clamp, thru axle and UDH derailleur hanger.

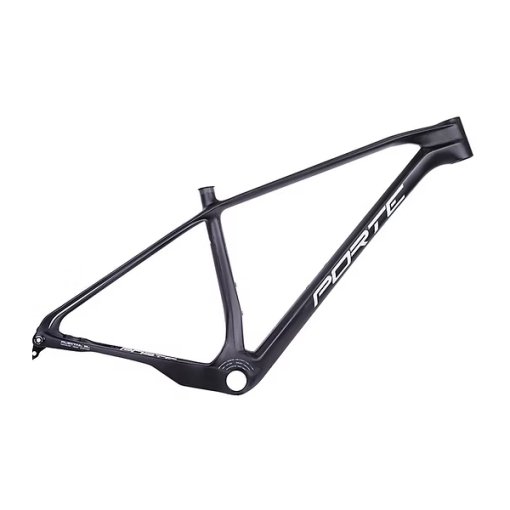

| Product Name: | Porte ATLAS 2.0 - XC Carbon Frameset - 2026 - glossy |
| Manufacturer: | Porte |
| Item Code: | PTE766996 |
| activity: | Cycling |
| gender: | men |
| material: | Carbon |
| usage bikesport: | MTB, Cross Country |
| brake type: | Disc Brake |
| wheel size: | 29" (622mm) |
| Rear Triangle: | Unsuspended |
| axle standard: | 12x148mm Boost (RW) |
| max tire width: | 60.9mm |
| disc brake mount: | Flatmount |
| max. disc diameter: | 180mm |
| S.H.I.S.: | integrated (IS) |
| Seatpost Ø: | 31.6mm |
| changable derailleur hanger: | yes |
| S.H.I.S. top: | IS52 / 28.6 |
| S.H.I.S. bottom: | IS52 / 40 |
| dropouts: | conventional |
| fork included: | without fork |
| Seatpost Clamp Ø: | 34.9mm |
| bottom bracket type: | Pressfit |
| bottom bracket case width: | 92mm |
| Model year: | 2026 |
| Color: | Black |
| weight: | 990g |
| cable routing: | internal |
| Weight Source: | Manufacturer |
| Steerer Tube Ø - Top: | 1 1/8“ |
| Steerer Tube Ø - Bottom: | 1 1/2“ |
| Frame Shape: | Diamond |
| Manufacturer page: | https://www.rideporte.com/ |
