The V5Rs is the latest evolution of the Colnago V-Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round road bike, designed to continue dominating the
The lightest Colnago.

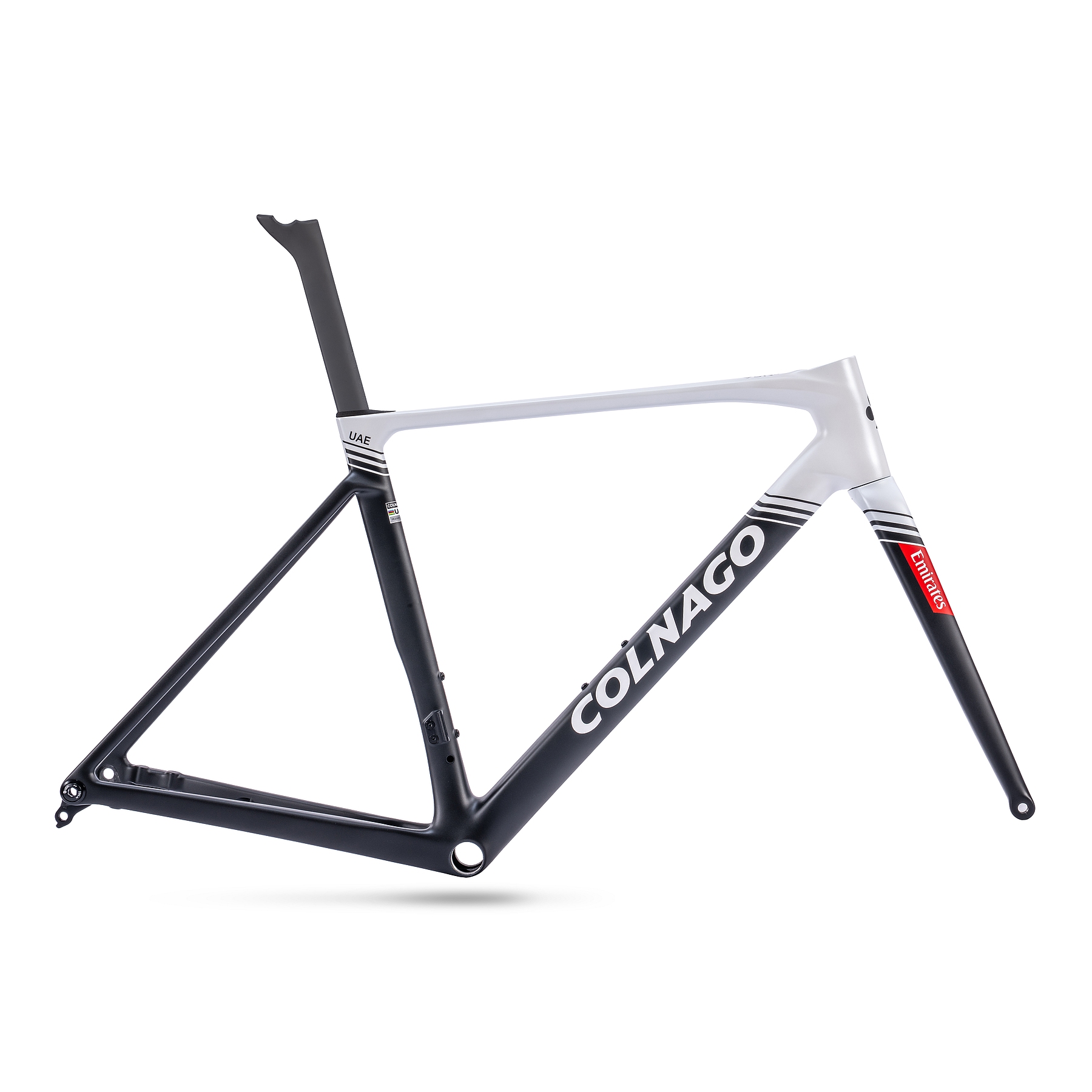

The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame of 685 grams. The frameset weighs 12.5% less than its predecessor without reducing stiffness.
Finer profiles.
The experience gained with the Y1Rs made it possible to refine the design of the V5Rs, which has slim and powerful profiles. In the wind tunnel, the aerodynamic performance is close to that of the best aero frames.
Reduced frontal area.
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The further development of the steering tube - now narrower - helps to reduce drag and save watts.
Stiff and responsive.
The V5Rs combines lightness and aerodynamics without compromising on stiffness and responsiveness, ensuring performance that meets the demands of the UAE team's professional racers.
More precise riding.
The V5Rs features a new, lighter and more precise fork. The 32 mm tire clearance allows the use of wider tires: more grip, ride-ability and speed on uneven terrain.
Absolute carbon quality.
Thanks to new lamination techniques, the arrangement of the carbon fibers in each area of the frame is studied and controlled. The result is a light, resistant and durable structure.
| Product Name: | Colnago V5Rs Ultegra Di2 12v Vision - Carbon Roadbike - 2025 - SDM5 |
| Manufacturer: | Colnago Bikes |
| Item Code: | COL725917 |
| activity: | Cycling |
| gender: | men |
| material: | Carbon |
| usage bikesport: | Road Bike |
| chain: | Shimano CN-M8100 |
| cassette: | Shimano Ultegra |
| shifter: | Shimano Ultegra Di2 ST-R8170 |
| rear derailleur: | Shimano Ultegra Di2 RD-R8150 |
| front derailleur: | Shimano Ultegra Di2 FD-R8150 |
| bottom bracket: | Shimano BSA |
| chainring ratio: | 52-36 |
| crankset: | Shimano Ultegra |
| brakes: | Shimano Ultegra BR-R8170 | 160/140mm |
| wheels: | Vision SC45 |
| seat post model: | Carbon | 15mm offset |
| saddle: | Prologo Scratch M5 |
| bar tape: | Colnago Grip Black |
| handle bar: | Colnago CC.01 Carbon Cockpit System |
| stem: | Colnago CC.01 Carbon Cockpit System |
| fork: | Carbon | Semi-Circular section |
| headset: | 1"/8 - 1"/4 | SLT Treated Bearings |
| frame: | Colnago V5Rs Monocoque carbon | Finite Elemental Modeling (FEM) |
| Shifting System (Manufacturer): | Shimano |
| gear ratio: | 11-34 |
| Shifting Type: | Chain - Electronical |
| brake type: | Disc Brake |
| wheel size: | 28" (622mm) |
| bike special accessories: | Colnago Carbon Bottle Cage |
| seatpost: | Seatpost rigid |
| tires: | Pirelli PZero Race | 700x28 |
| max tire width: | 32mm |
| max. system weight: | 120kg |
| brake actuation: | Hydraulic |
| Model year: | 2025 |
| Collection: | Full year |
| Color: | Black, White |
| fork construction: | Rigid Fork |
| manufacturer item code: | 1CCL.V5S.0TU.U2E.VS5.XXX.XXXX |
| cable routing: | fully integrated |
| Product Series: | Colnago - V5Rs |
| Number of Gears: | 2 x 12 |
| Manufacturer page: | http://www.colnago.com |
